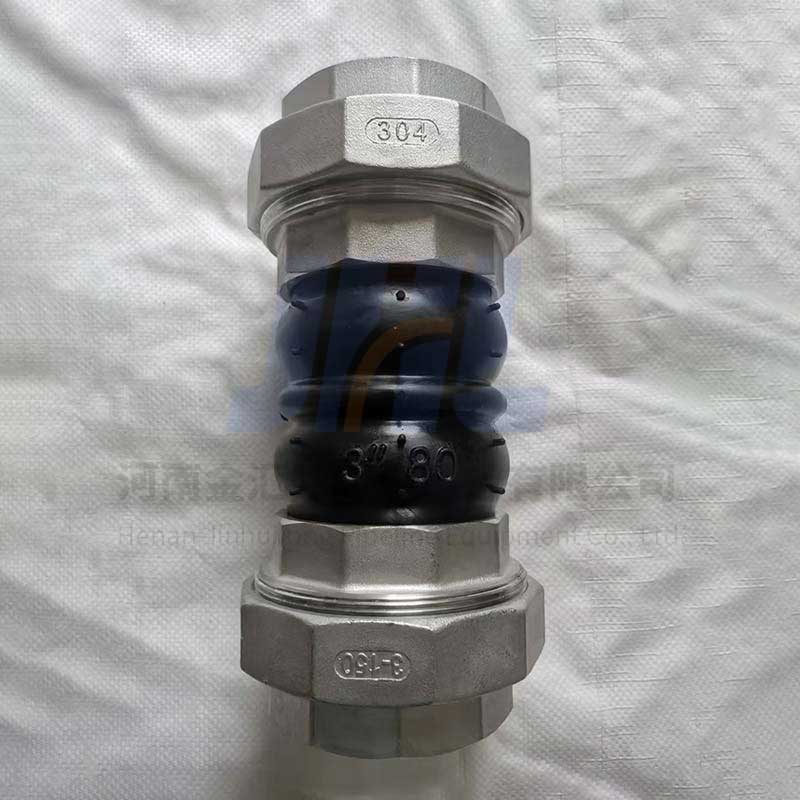

Twin sphere union rubber expansion joint is composed of inner and outer rubber, reinforcement layer, vulcanized composite model and parallel metal joints. Wire-fastened rubber joints can also be made of different materials depending on the medium through which they flow.
Working Principle:
Composed of multiple rubber expansion joints connected together, enhancing displacement compensation capabilities and system stability.
Function Summary:
Large displacement compensation
Improved pipeline flexibility
Suitable for complex operating conditions
Application Scenarios:
Long-distance pipelines
Heating pipelines
Large industrial facilities
Pipeline systems with significant vibration
| Nominal Diameter （mm） | LengthLmm | Axial displacement mm | Haorizontal isplacement mm | Angular deflection(a1+a2)° | |||
| mm | inch | A Type | B Type | Extension | Compression | ||
| 15 | 0.5 | 180 | 200 | 5 | 10 | 20 | 45 |
| 20 | 0.75 | 200 | 200 | 5 | 10 | 20 | 45 |
| 25 | 1 | 210 | 200 | 5 | 10 | 20 | 45 |
| 32 | 1.25 | 210 | 200 | 5 | 10 | 20 | 45 |
| 40 | 1.5 | 220 | 200 | 5 | 10 | 20 | 45 |
| 50 | 2 | 220 | 220 | 5 | 10 | 20 | 45 |
| 65 | 2.5 | 240 | 240 | 5 | 10 | 20 | 45 |
| 80 | 3 | 285 | 285 | 5 | 10 | 20 | 45 |
PS:The above data is for reference only and applies to sizes from DN15 to DN4000. Please contact us immediately for more details!
Share your pipeline parameters, working conditions, drawings, or quantity requirements with our team. Our engineers will review your information and provide suitable product recommendations, technical suggestions, and quotation support as quickly as possible.
