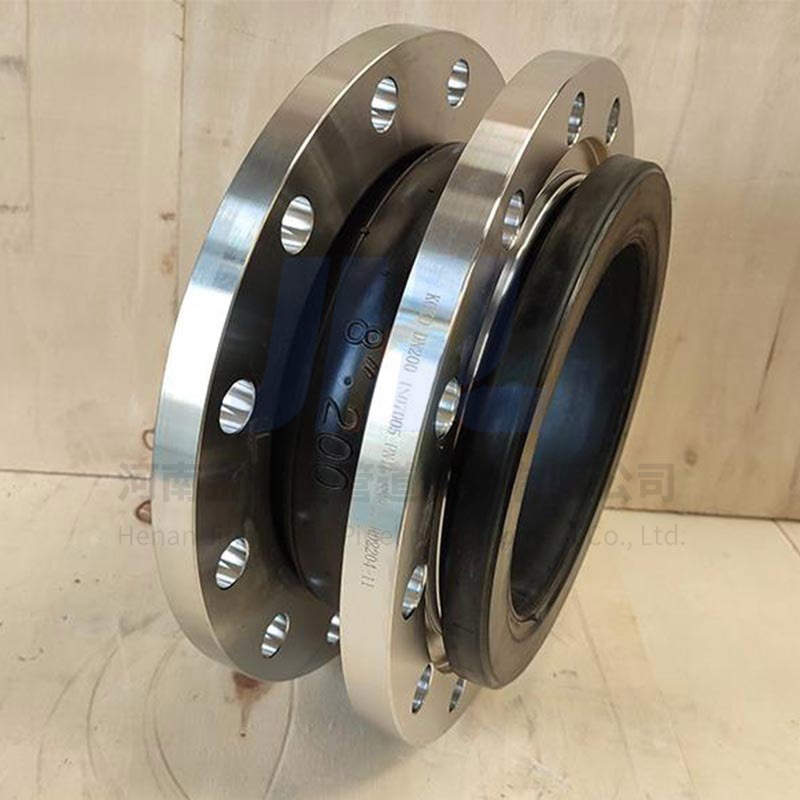

Flanged Rubber Expansion Joint
Designed to absorb vibration, reduce noise, and compensate for thermal expansion and misalignment in piping systems. Ideal for protecting pumps, valves, and pipelines in HVAC, water, and industrial applications. Available in various sizes, rubber materials, and flange standards.
Working Principle:
Through the elastic deformation of a single spherical rubber structure, it absorbs axial displacement, lateral displacement, and a certain degree of angular deflection of the pipeline.
Function Summary:
Compensates for thermal expansion and contraction of pipelines
Shock absorption and noise reduction
Reduces stress on pipelines and equipment
Application Scenarios:
Water supply and drainage systems
HVAC (air conditioning water systems)
Pump station inlet and outlet pipelines
General industrial pipelines
Product Parameters:
PS:The above data is for reference only and applies to sizes from DN15 to DN4000. Please contact us immediately for more details!
Share your pipeline parameters, working conditions, drawings, or quantity requirements with our team. Our engineers will review your information and provide suitable product recommendations, technical suggestions, and quotation support as quickly as possible.
